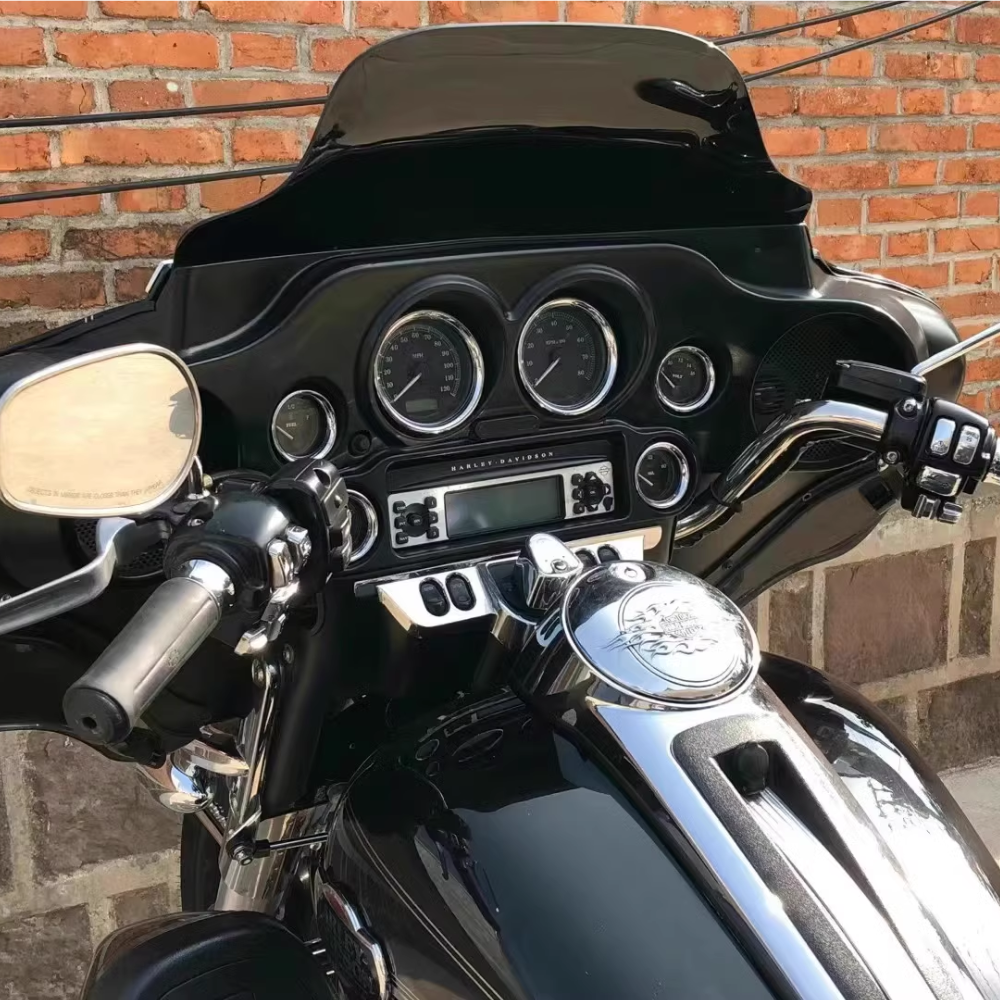

The gauges on a 2009 Harley-Davidson Ultra Classic provide important information about the bike's performance and status. Here’s a breakdown of the main gauges and what they mean:

1. Speedometer (typically in the center of the gauge cluster)

  • Displays the speed you’re traveling in miles per hour (MPH) or kilometers per hour (KPH), depending on your bike's settings.

2. Tachometer (often positioned next to the speedometer)

  • Shows the engine's RPM (revolutions per minute), indicating how fast the engine is spinning. The tachometer helps you avoid over-revving the engine, which can damage it.
  • The needle or digital readout shows the current RPM, and it typically has a redline to indicate the maximum safe engine speed.

3. Fuel Gauge

  • Indicates how much fuel is left in the tank. The gauge usually has a needle or digital display that moves from empty (E) to full (F), showing the remaining fuel level.

4. Voltage Gauge (typically a small gauge or light)

  • Displays the voltage output of the charging system, indicating whether your battery is being charged properly.
  • A healthy voltage reading is usually between 12.5 and 14.5 volts. If the gauge shows lower or higher readings, it may signal an issue with the charging system or the battery.

5. Oil Pressure Gauge (in some models)

  • Displays the oil pressure of the engine. A healthy oil pressure reading should be in the normal range (usually indicated on the dial). Low oil pressure could indicate a problem with the oil system, which needs immediate attention.

6. Engine Temperature Gauge

  • Displays the temperature of the engine. It helps monitor the engine’s operating temperature to avoid overheating. It should stay in the middle or "normal" range while riding.

7. Warning Lights (located around the main gauges or as part of the digital display)

  • Check Engine Light (CEL): Lights up when the engine management system detects an issue.
  • Oil Pressure Warning: Lights up if oil pressure is too low.
  • Battery Warning: Illuminates if the charging system isn't functioning correctly.
  • Turn Signal Indicators: Show when the turn signals are active.
  • High Beam Indicator: Lights up when the high beam headlights are on.
  • ABS Warning: Lights up if there’s an issue with the Anti-lock Braking System (ABS).

8. Odometer and Trip Meters (often digital displays)

  • Odometer: Shows the total miles the bike has traveled.
  • Trip Meters: Displays the distance traveled on specific trips. There are usually two trip meters (A and B) that can be reset to track different distances.

These gauges and lights are essential for monitoring the bike’s health and performance. Regularly checking them can help you stay on top of maintenance needs and identify any potential issues early.
